Rod Bars


We stock Stainless Steel, Carbon and Alloy specialty steels supplied in the as rolled, annealed and normalized conditions. We offer cut to size and heat treatment through our service center.We also have stock Bar, Hexagon, Square, Round products in various dimensions and grades.
User Industries :
Chemicals, Fats, & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personal.


event-img

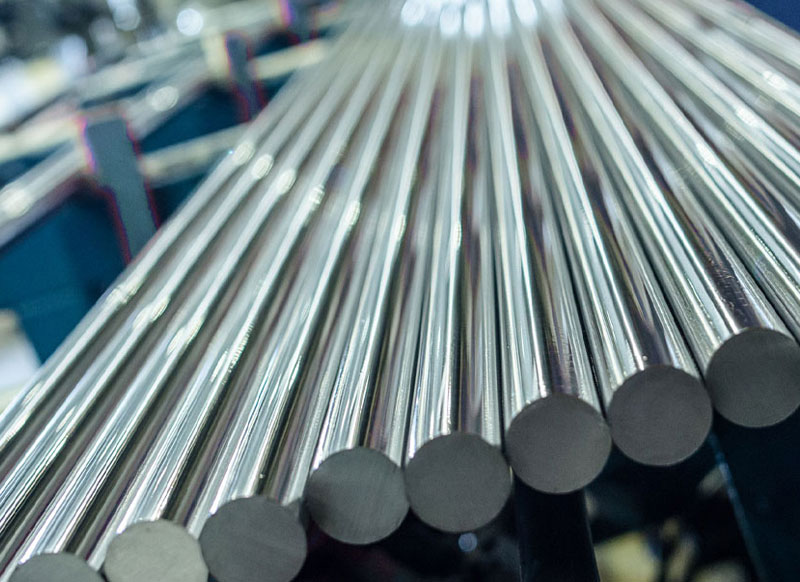

Stainless & Duplex Steel

Range:
3.17 MM TO 350 MM DIA

Stainless Steel :
ASTM / ASME SA 276 TP 304 , 304L , 309S , 309H, 310S , 316 , 316L , 316 TI , 317 , 321 , 347 , 410 , 420 , 430 ,431 , 440A ,B & C. , 446 ASTM / ASME SA 479 TP 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 321 , 321H , 347 , 347 H , 410, 430 ,431 & 444.

Duplex Steel :
ASTM / ASME SA 276 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.


event-img

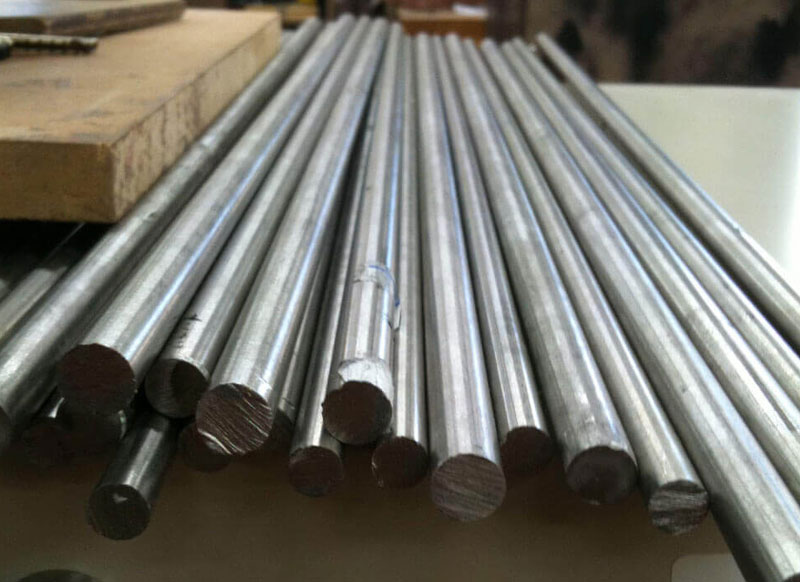

Carbon & Alloy Steel

Range:
1 MM TO 350 MM DIA

Carbon Steel :
ASTM / ASME A 105.

Alloy Steel :
ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
ASTM / ASME A 729 GR B 11 & B 22.


event-img

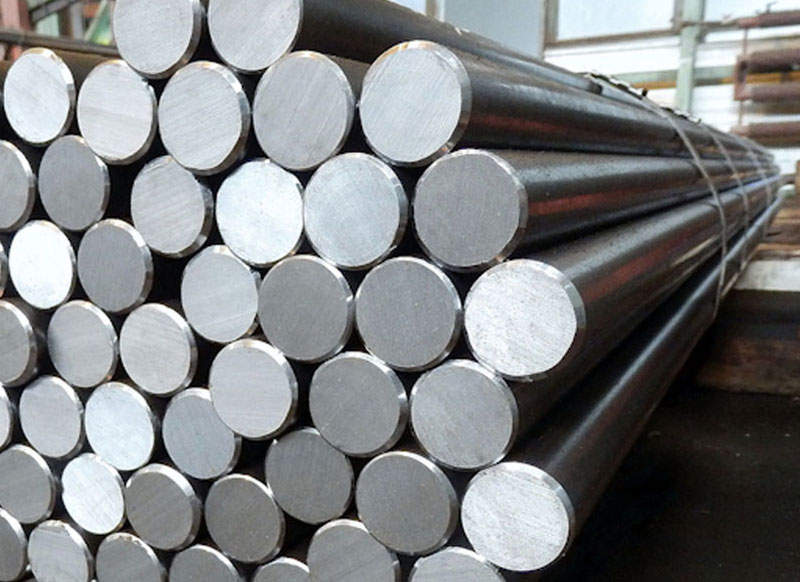

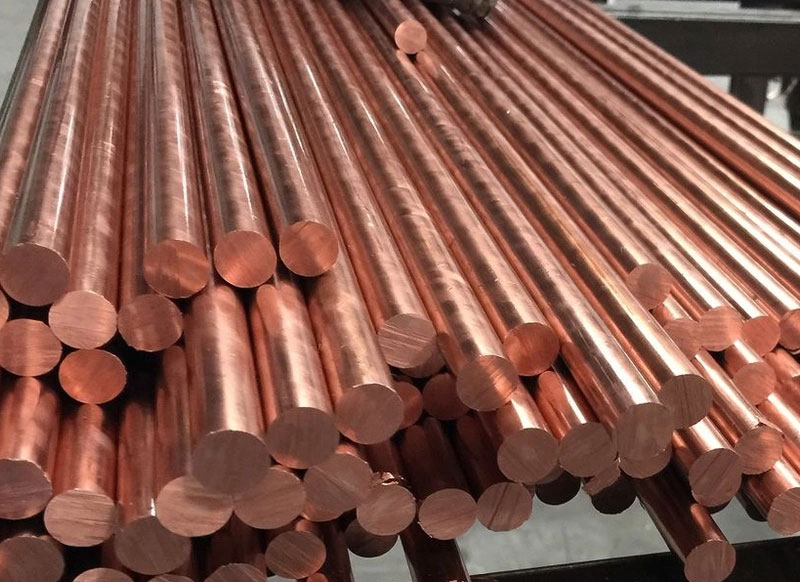

Nickel & Copper Alloy

Range:
ASTM / ASME SB 160 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 164 UNS 4400 (MONEL 400 )
ASTM / ASME SB 425 UNS 8825 (INCONEL 825) ASTM / ASME SB 166 UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 446UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

event-img

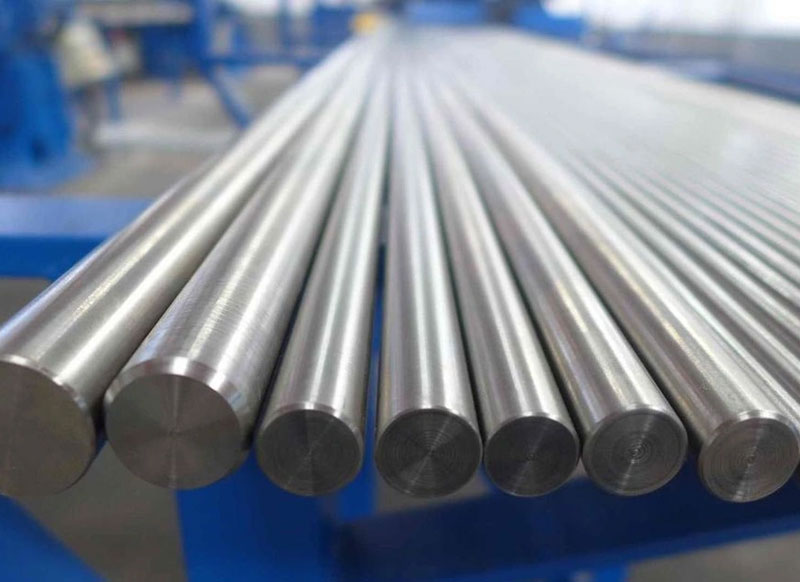

Hastelloy

Grades :
Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000

Type :
Hastelloy Round Bar
Hastelloy Bright Bar, Hastelloy Polish Bar, Hastelloy Black Round Bar, Hastelloy Forged Bar, Hastelloy Forged Round Bar, Hastelloy Hex Bar, Hastelloy Forged Hex Bar, Hastelloy Flat Bar, Hastelloy Rod,

event-img

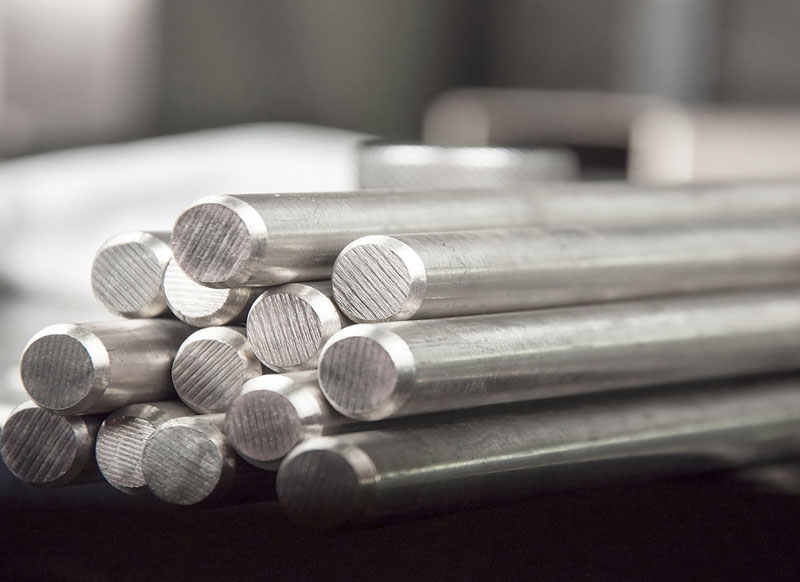

Inconel

Grade :
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750

Sizes :
1mm to 200mm diameter

Types :
Bars, Rods, wire

Standard :
ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE


event-img

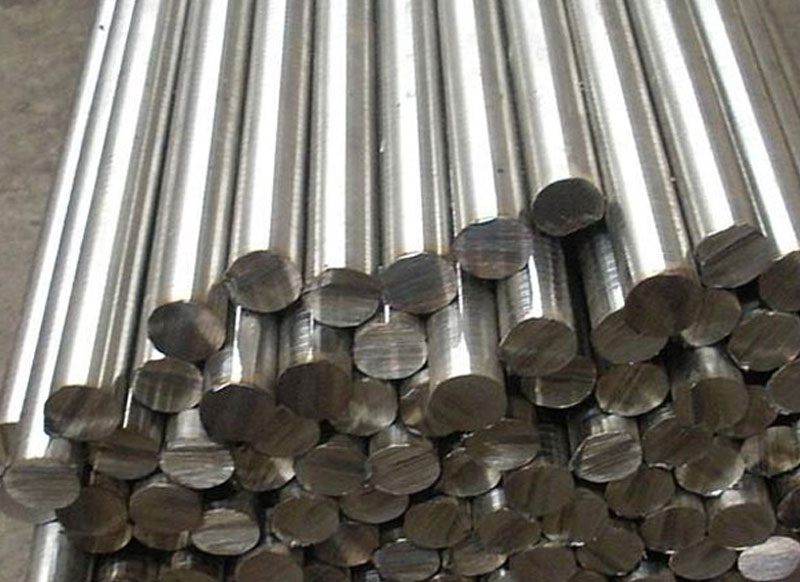

Incoloy

Grade :
Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Standard :
ASTM B408, AMS 5766, ISO 9723, ISO 9724, BS 3076NA15, BS 3075NA15, EN 10095, VdTüV 412 & 434

Type :
Round Bar, Bright Bar, Polish Bar, Black Round Bar, Forged Bar, Forged Round Bar, Hex Bar, Forged Hex Bar, Flat Bar, Rod

event-img

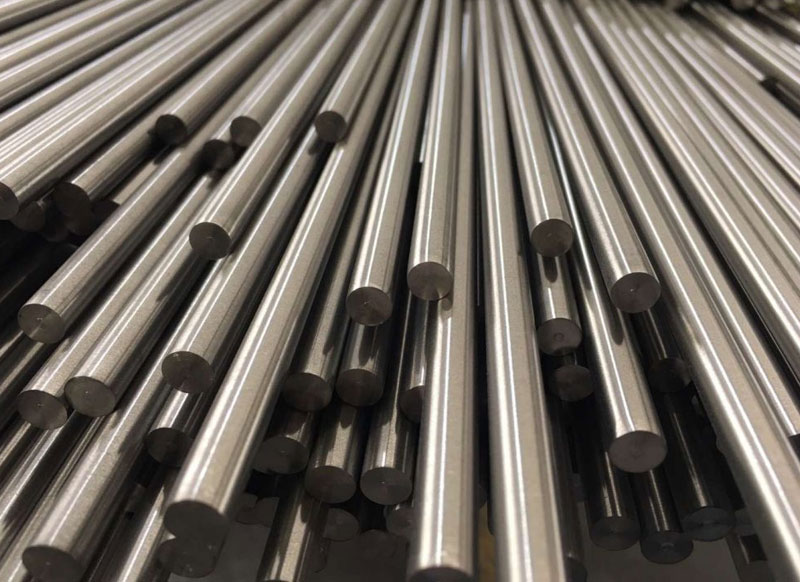

Monel

Standard :
ASTM / ASME SB 164

Grade :
Monel 400, Monel k500

Range :
5 mm dia To 500 mm dia in 100 mm TO 6000 mm Length


event-img

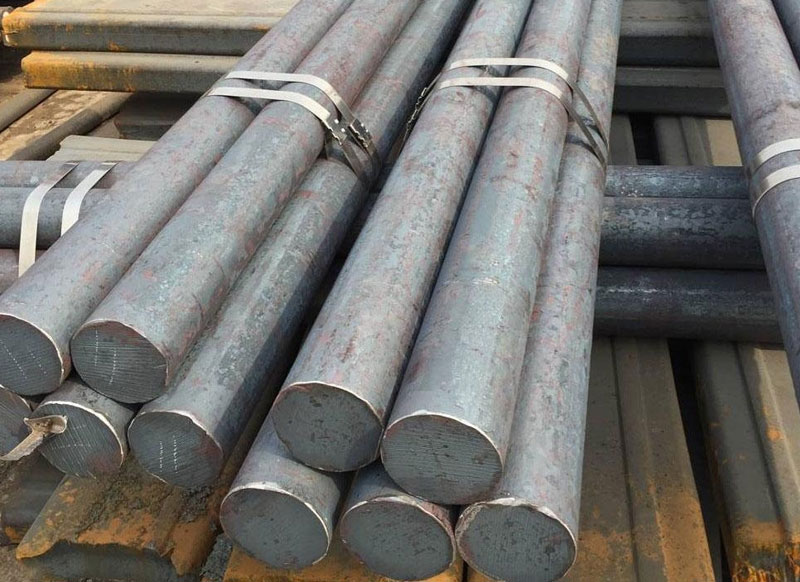

Nitronic 60

Nitronic 60 Stainless Steel is an austenitic alloy, considered to have the best galling resistance of the entire range of Stainless Steels.


Characteristics of Nitronic 60 include
• High pitting resistance
• Outstanding corrosion resistance Good high temperature properties for temperatures around 982 degrees Centigrade
• Oxidation resistance
• Crevice corrosion and chloride pitting resistance is greater than Stainless Steel 316.

Nitronic 60 can be formed using common forming techniques, and pre-heating is not required to weld Nitronic 60. Common welding methods such as gas metal arc, gas tungsten arc and submerged arc can be used to weld Nitronic 60. Hardening Nitronic 60 Stainless Steel calls for the alloy to be cold worked.


Primary Elements:
• Between 16 and 18 percent Chromium
• 8 to 9 percent Nickel
• 7 to 9 percent Manganese
• 3.5 to 4.5 percent Silicon
• Halance being Iron
• Trace amounts of Carbon, Sulfur, Phosphorus and Nitrogen

Industries Served :
• Oil and gas production
• Hydroelectric power
• Petrochemical
• Food processing
• Automotive
• Zarine
• Nharmaceutical
• Construction and chemical sector.

event-img

Titanium round bar

Grade:
Gr1, Gr2, Gr3, Gr5, Gr7
Standard:
ASTM B348, ASTM F136, ASTM F67, AMS 4928

Diameter:
4mm to 350mm, Length: 50mm to 6000mm
Payment :
T/T or L/C at sight
MOQ :
10 kg
Package :
Ply wooden case or as request

Chemical Requirments:

N C H FE O AI V PA MO NI TI
GR 1 0.03 0.08 0.015 0.020 0.18 Â bal
GR 2 0.03 0.08 0.015 0.30 0.25 bal
GR 3 0.05 0.08 0.015 0.30 0.35 bal
GR 4 0.05 0.08 0.015 0.50 0.40 bal
GR 5 0.05 0.08 0.015 0.40 0.20 5.5~6.75 3.5~4.5 bal
GR 7 0.03 0.08 0.015 0.30 0.25 0.12~0.25 bal
GR 9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 bal
GR 12 0.03 0.08 0.015 0.30 0.25 0.2~0.4 0.6~0.9 bal


Tensile requirements :


GRADE TENSIL
STRENGTH(MIN)		 YEILD
STRENGTH(MIN)		 ELONGATION(%)
ksi MPa ksi MPa
1 35 240 20 138 24
2 50 345 40 275 20
3 65 450 55 380 18
4 80 550 70 483 15
5 130 895 120 828 10
6 50 345 40 275 20
7 90 620 70 438 15
8 70 438 50 345 18

event-img

Tantalum

Specifications :
Material: Tantalum bar
Grade: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
size: Dia3~120mm
Standard:ASTM B 365
Tantalum products/Tantalum bars
Material: Ta-1
Grade: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
size: Dia3~120mm
Standard: ASTM B 365
Tantalum bar Tantalum- tungsten alloy bar
Material: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
Available size: 3~120mm
Standard: As per ASTM B 365-98
Purity:
>=99.95% or 99.99% Tantalum rod Tantalum alloy rod
Standard: ASTM B365-98
Dimension: Dia3~100mm
Material: RO5200,RO5400,RO5252(Ta-2.5W)


Tolerance :

DIAMETER DIAMETER TOLERANCE LENGTH TOLERANCE
Forging rod Extruded Rods Rolling rod Ground rod
3.0-4.5 ±0.05 ±0.05 500-1500 + 5
4.5-6.5 ±0.10 ±0.10 500-1500 + 5
6.5-10.0 ±0.15 ±0.15 400-1500 + 5
10-16 ±0.20 ±0.20 300-1200 + 5
16-18 ±1.0 ±0.30 200-2000 + 20
18-25 ±1.5 ±1.0 ±0.40 200-2000 + 20
25-40 ±2.0 ±1.5 ±0.50 150-4000 + 20
40-50 ±2.5 ±2.0 ±0.60 100-3000 + 20
50-65 ±3.0 ±2.0 ±0.80 100-1500 + 20
