Forge Fittings Dimension




Flanges Dimension




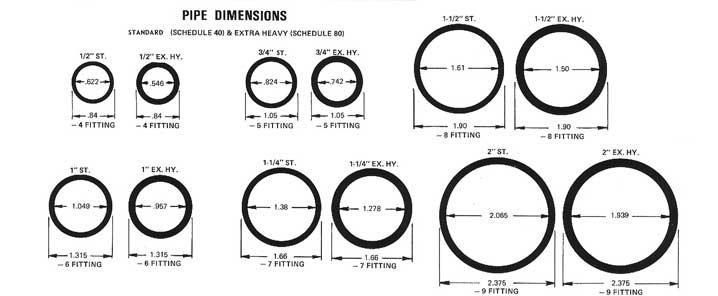

NB Size OD 40S 5S 10S S10 S20 S40 S60 XS/80S S80 S100 S120 S140 S160 XXS
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
1/8” 10.29 1.2 1.73 2.41
1/4” 13.72 1.7 2.24 3.02
3/8” 17.15 1.7 2.31 3.2
15 1/2” 21.34 2.8 1.7 2.1 2.77 3.73 3.73 4.78 7.47
20 3/4” 26.67 2.9 1.7 2.1 2.87 3.91 3.91 5.56 7.82
25 1” 33.4 3.4 1.7 2.8 3.38 4.55 4.55 6.35 9.09
32 1 1/4” 42.16 3.6 1.7 2.8 3.56 4.85 4.85 6.35 9.7
40 1 1/2” 48.26 3.7 1.7 2.8 3.68 5.08 5.08 7.14 10.2
50 2” 60.33 3.9 1.7 2.8 3.91 5.54 5.54 9.74 11.1
65 2 1/2” 73.03 5.2 2.1 3.1 5.16 7.01 7.01 9.53 14
80 3” 88.9 5.5 2.1 3.1 5.49 7.62 7.62 11.1 15.2
90 3 1/2” 101.6 5.7 2.1 3.1 5.74 8.08 8.08
100 4” 114.3 6 2.1 3.1 6.02 8.56 8.56 11.1 13.5 17.1
125 5” 141.3 6.6 2.8 3.4 6.55 9.53 9.53 12.7 15.9 19.1
150 6” 168.3 7.1 2.8 3.4 7.11 10.97 11 14.3 18.3 22
200 8” 219.1 8.2 2.8 3.8 6.4 8.18 10.3 12.7 12.7 15.1 19.3 20.6 23 22.2
250 10” 273.1 9.3 3.4 4.2 6.4 9.27 12.7 12.7 15.1 19.3 21.4 25.4 28.6 25.4
300 12” 323.9 9.5 4 4.6 6.4 10.3 14.3 12.7 17.5 21.4 25.4 28.6 33.3 25.4
350 14” 355.6 9.5 4 4.8 6.4 7.9 11.1 15.1 12.7 19.1 23.8 27.8 31.8 35.7
400 16” 406.4 9.5 4.2 4.8 6.4 7.9 12.7 16.7 12.7 21.4 26.2 31 36.5 40.5
450 18” 457.2 9.5 4.2 4.8 6.4 7.9 14.3 19.1 12.7 23.8 29.4 34.9 39.7 45.2
500 20” 508 9.5 4.8 5.5 6.4 9.5 15.1 20.6 12.7 26.2 32.5 38.1 44.5 50
550 22” 558.8 9.5 4.8 5.5 6.4 9.5 22.2 12.7 28.6 34.9 41.3 47.6 54
600 24” 609.6 9.5 5.5 6.4 6.4 9.5 17.5 24.6 12.7 31 38.9 46 52.4 59.5
650 26” 660.4 9.5 7.9 13 12.7
700 28” 711.2 9.5 7.9 13 12.7
750 30” 762 9.5 6.4 7.9 7.9 13 12.7
800 32” 812.8 9.5 7.9 13 17.5 12.7
850 34” 863.6 9.5 7.9 13 17.5 12.7
900 36” 914.4 9.5 7.9 13 19.1 12.7
